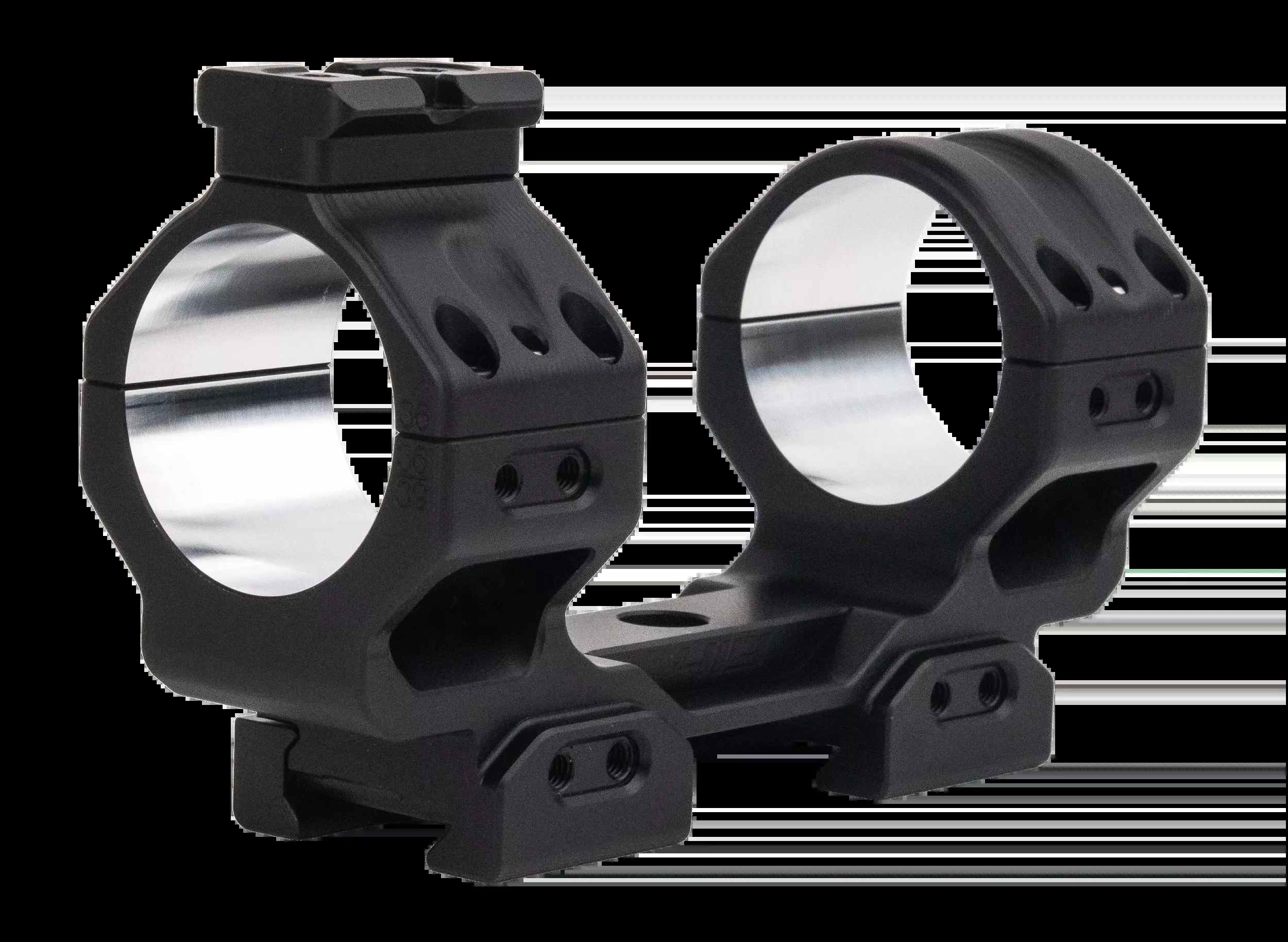

The Area 419 Tactical One-Piece Scope Mount (TSM) is a precision-machined optic base built for long-range and tactical rifles. Cut from a single billet of 7075 aluminum and finished in a durable Black anodized coating, this one-piece design provides a rigid, stress-free platform that protects scope tubes from clamping distortion and holds zero under hard recoil.
This variant is configured for 36mm scope tubes with a 39mm center height (approximately 1.54 in) and 0 MOA built-in cant, making it ideal for rifles running a flat-base optic or moderate-magnification variable. Every TSM is final-bored in matched sets for perfect ring-to-ring alignment, and uses separate rail clamping bars so the optic is clamped independently of the base-to-rail interface, giving maximum contact area and a repeatable return to zero.
The mount measures 9.6 in long, weighs roughly 1.65 lbs, and attaches to any Mil-Std 1913 Picatinny rail. Area 419 calls for a torque spec of 45 in/lb on the Picatinny crossbolts. Proudly made in the USA, the TSM is a go-to optic base for precision bolt guns, AR-platform precision rifles, and tactical builds.
